Importing a cutting file into Sure Cuts A Lot (SCAL)

Sure Cuts A Lot (SCAL) can open the following file types:

  • .svg
  • .scut
  • .ai
  • .pdf
  • .png
  • .eps
  • .wpc

To open a .svg into SCAL do the following:

  1. Click on File > Import
  2. opening svg in scal

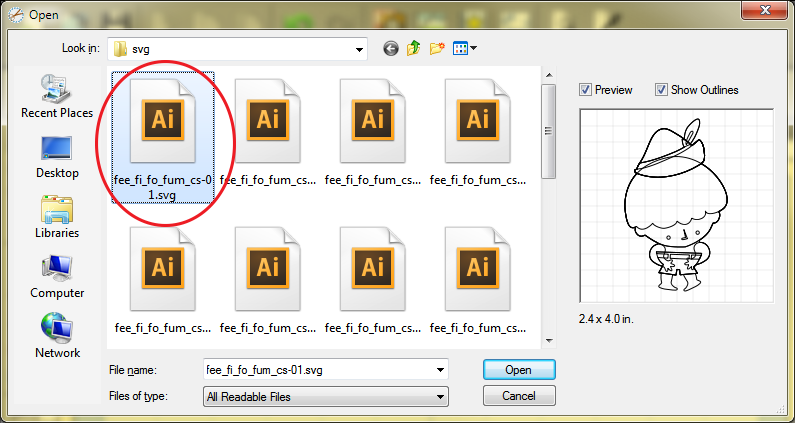

  3. Navigate to the folder that you have stored your LD svg files in.
  4. Choose your file by clicking on it. If you check the Preview box, you will see a preview in the open window. If you check the Show Outline box, the preview will be in outline format.
  5. opening svg in scal
  6. Your file will appear with all it's layers. The colors of the file may look a little off. That is of no consequence. Do not worry about it.
  7. opening svg in scal

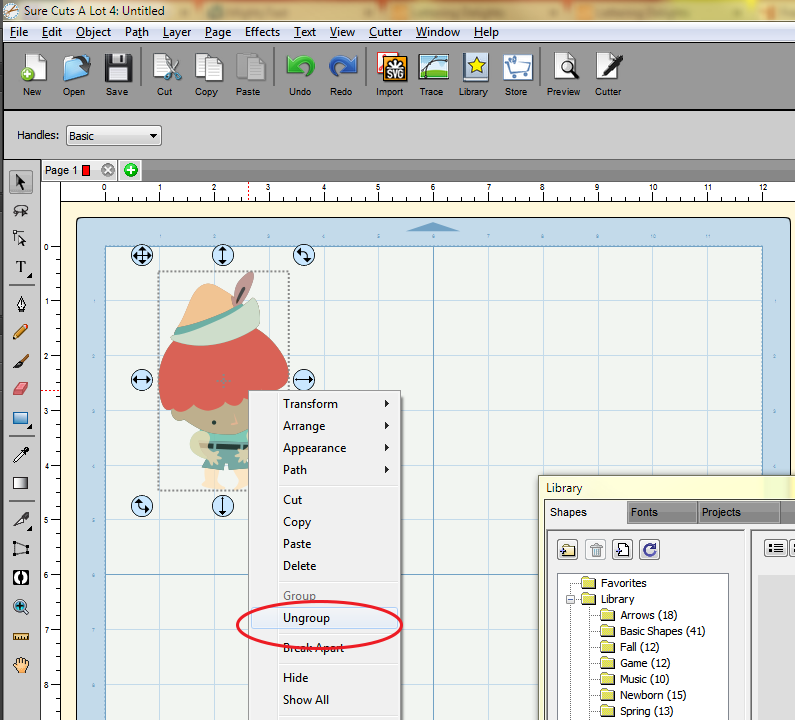

  8. Ungroup your file by right-mouse clicking and choosing "Ungroup". This gives you access to the individual layers.
  9. opening svg in scal

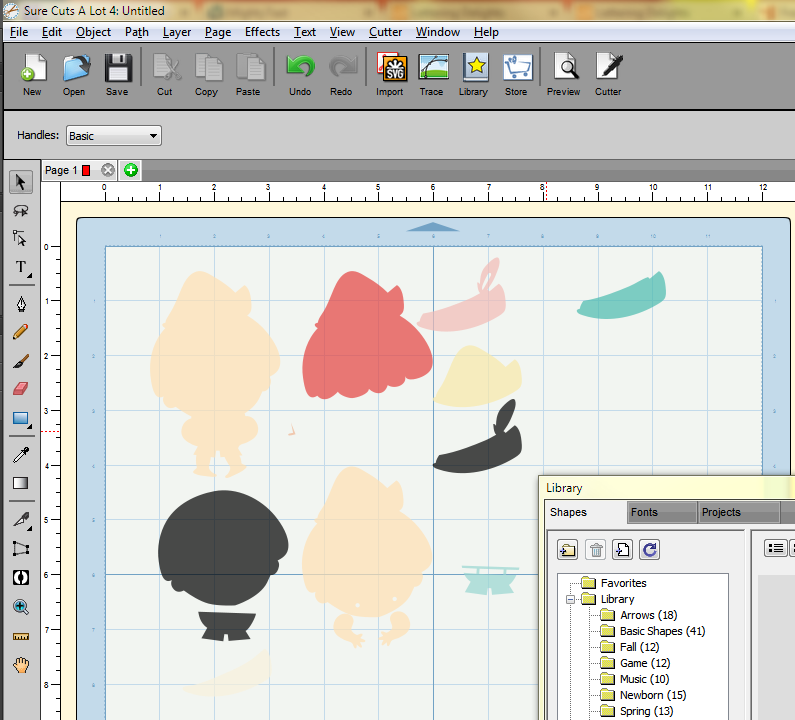

  10. Once the file is upgrouped, you can separate your images into pieces. You can place the different colors on different virtual mats. To add a new virtual mat, click the green plus button next to "Page 1".
  11. opening svg in scal

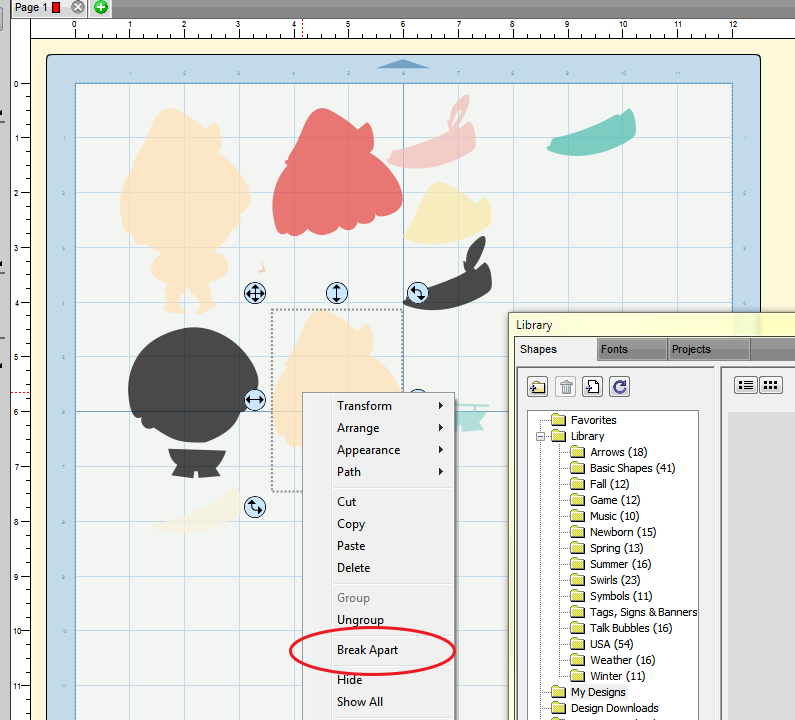

  12. If you need to alter an individual element that is a compound path, right-mouse click and choose "Break Apart"
  13. opening svg in scal

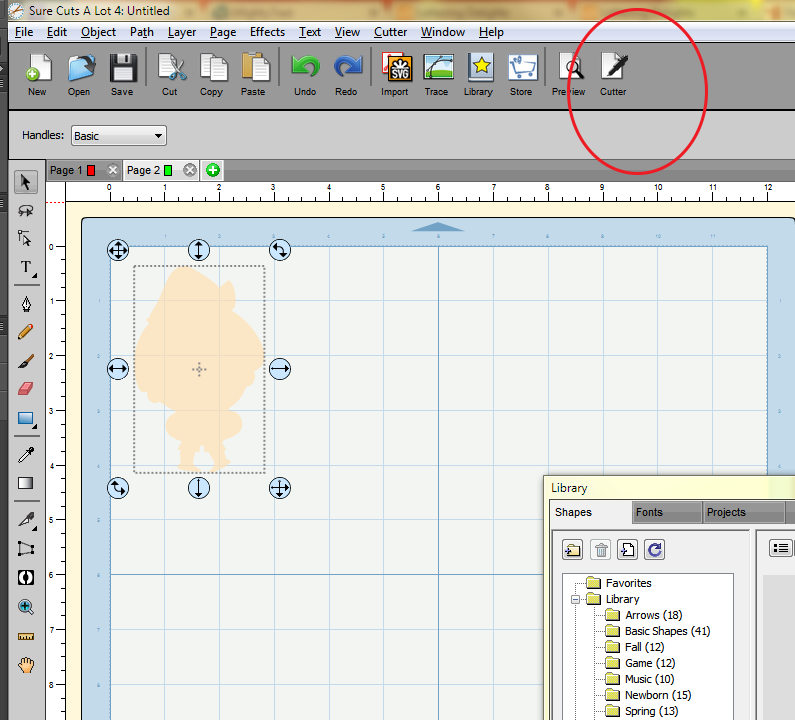

  14. When your paper is loaded on your real mat and your machine is on and you are ready to cut, send the file to cut by choosing "Cutter" icon.
  15. opening svg in scal
